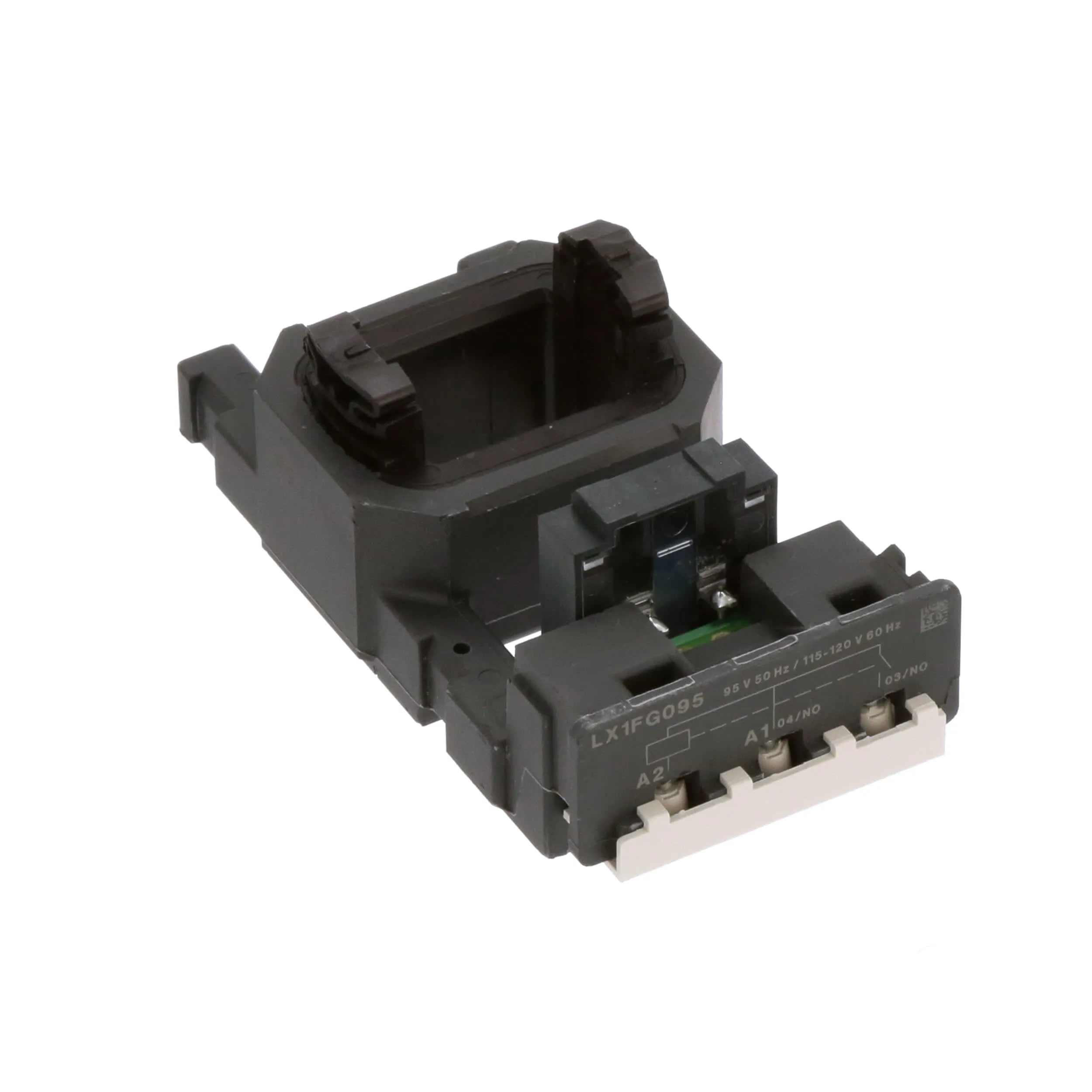

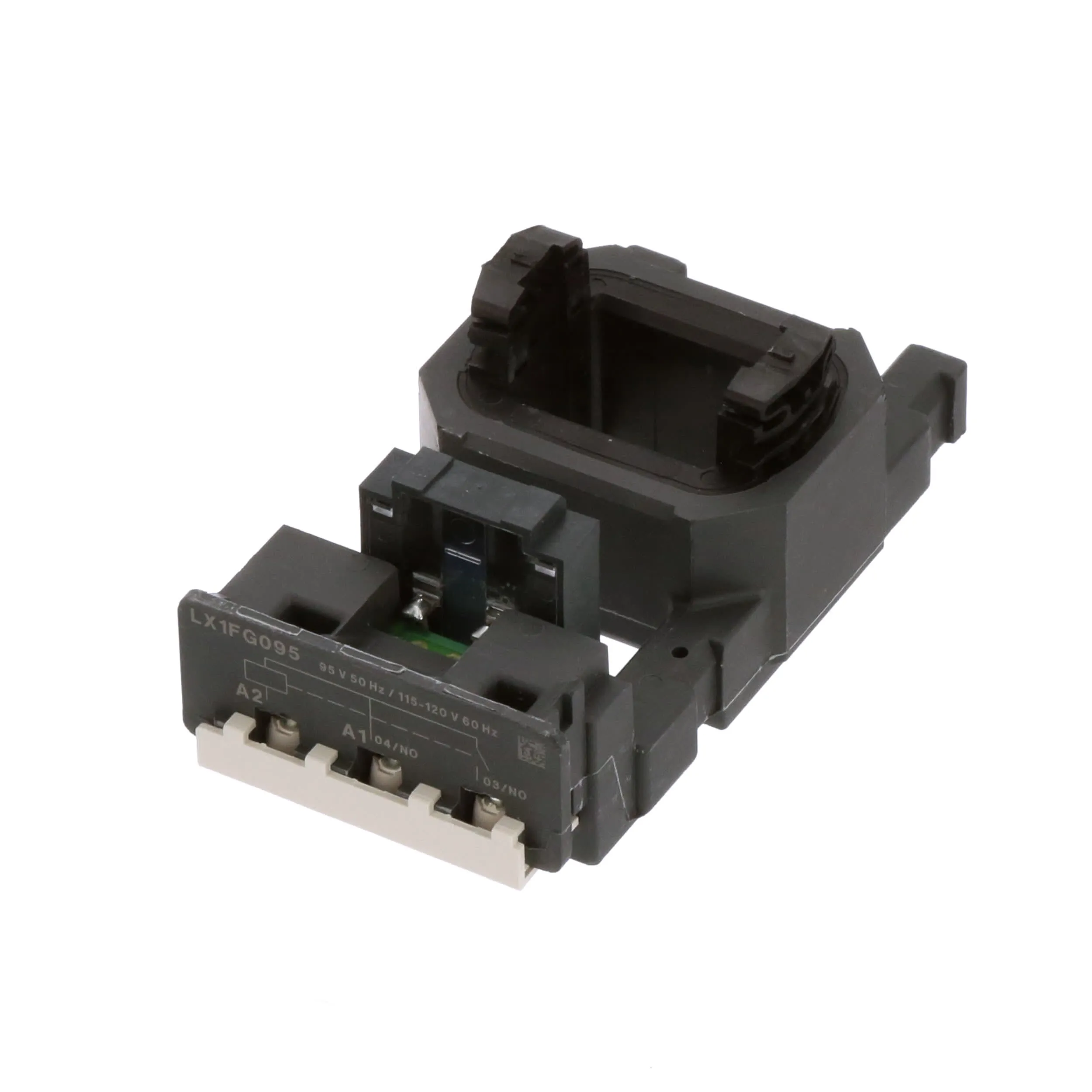

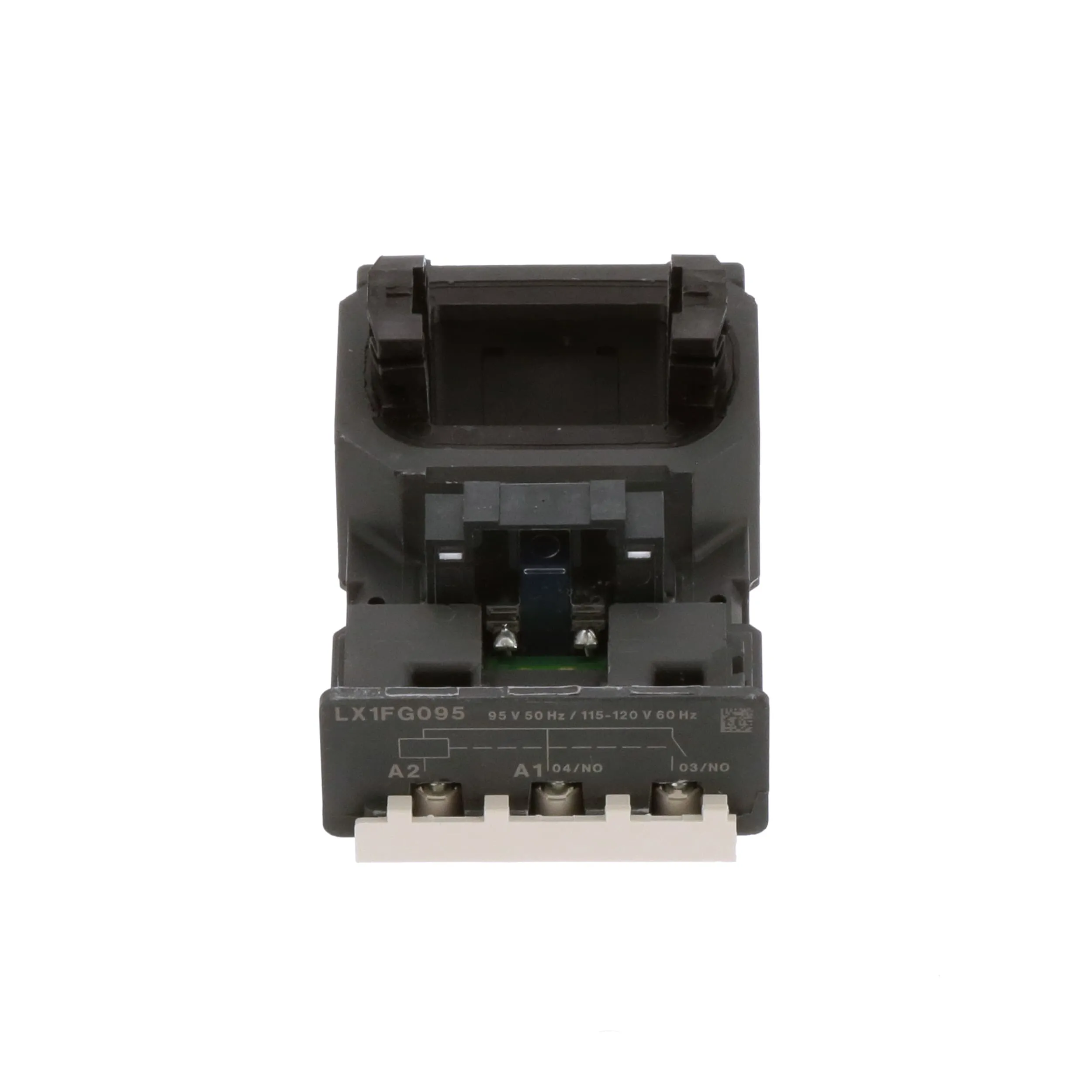

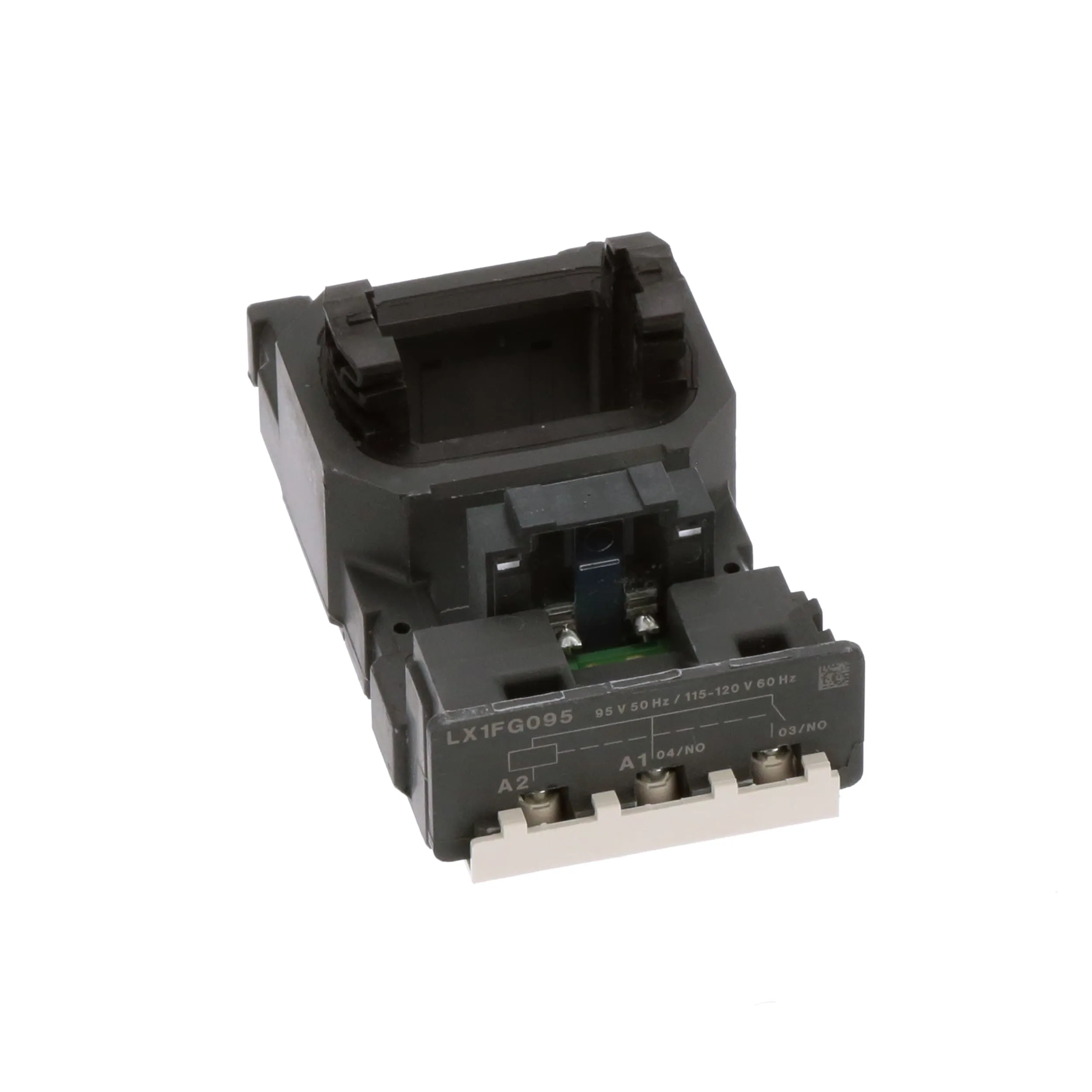

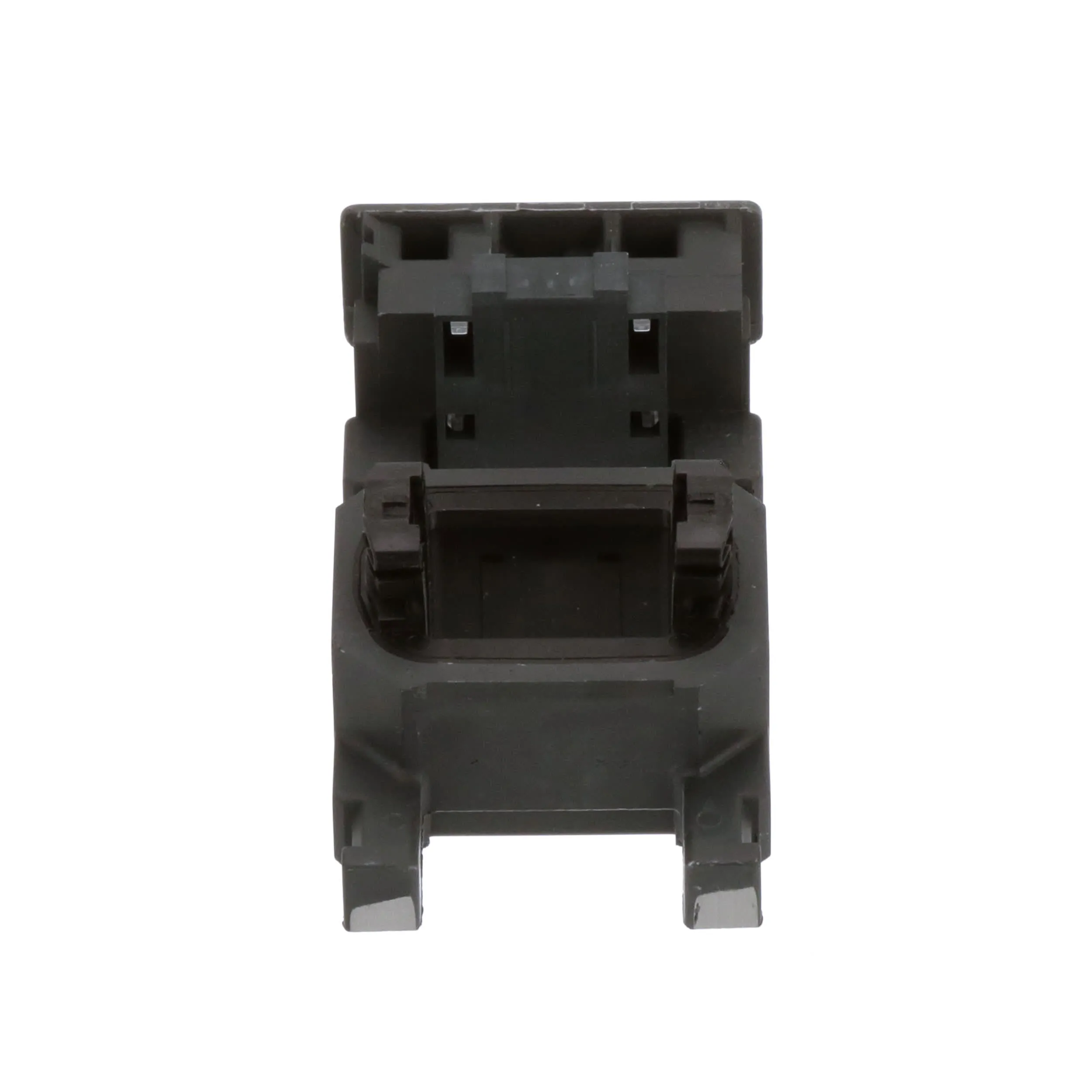

Name: Schneider Electric LX1FG095
SKU: 609180

Product Details ＋

Product Attribute	Attribute Value
Accessory Type	Contactor Coil
Current Rating	115 A
Family Name	TeSys Family
For Use With	LC1F185, LC1F225
Mounting Type	Snap-On
Primary Type	Contactor Coil
Series
Supply Voltage	120 VAC
Type	IEC
UPC Code	785901226833
Voltage Rating	120 VAC

Overview

Schneider Electric TeSys F Series – High-powered 3 Pole Contactors Suitable for Motor Control up to 1000 A and Power Switching up to 2600 A:

TeSys F is a range of high current contactors from 115 A to 1000 A designed for AC-3 applications and from 200 A to 2600 A for AC-1 applications. TeSys F series of contactors are specifically designed for the most demanding motor and power switching applications.

Features:

TeSys F offers high performance in motor control & power switching applications

Proven reliability with high mechanical and electrical durability

Combined with the LR9 electronic relay or GV7 motor circuit breaker, AC-3 contactors are the ideal motor starters offering quick & simple selection

Shared accessories across the range offers greater flexibility and reduced inventory

Withdrawable-type coils enable fast and easy maintenance

TeSys F contactors guarantee electrical coordination with fuses and circuit breaker offers

2 pole (400 A, 500 A & 630 A), 3 pole (115 – 2600 A) & 4 pole (115 A – 780 A) contactors

Pre-assembled star-delta motor starters (185-375 kW/440V AC), 3 pole AC-3 reversing contactors (115 A – 265 A) & 4 pole AC-1 change-over contactors (200-350 A)

Separate components and kits available for customer assembly of motor starters, reversing and change-over contactor solutions

Wide range of AC (40-400 Hz) and DC operating coils

Terminal connections suitable for connecting bus bars & cables

Wide range of common accessories to improve flexibility, functionality & safety

Complemented by Class10/20 LR9F type electronic thermal over-load relays and TeSys GV7-R circuit breaker for motor starter solutions

Suitable for switching of motors, lighting, heating, capacitors, auto-transformer starting, rotor circuits of slip-ring motors, etc.

Applications:

Machinery, HVAC, Hoisting, Mining & Metals, Oil & Energy, Utilities, Wind turbines, Photovoltaic, data centers, etc.

Switching of resistive, inductive, capacitive and DC circuits

Frequency drives and soft starters

Light distribution circuits, induction furnaces, etc.
