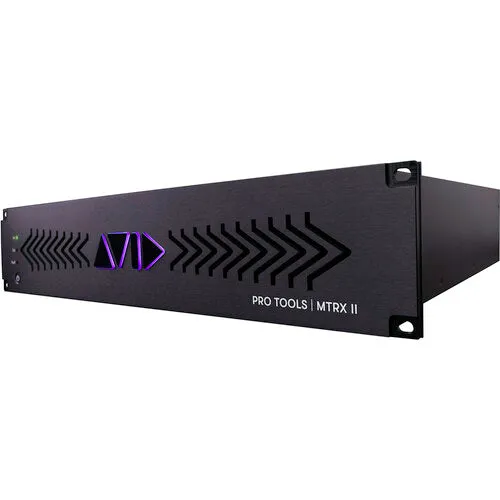

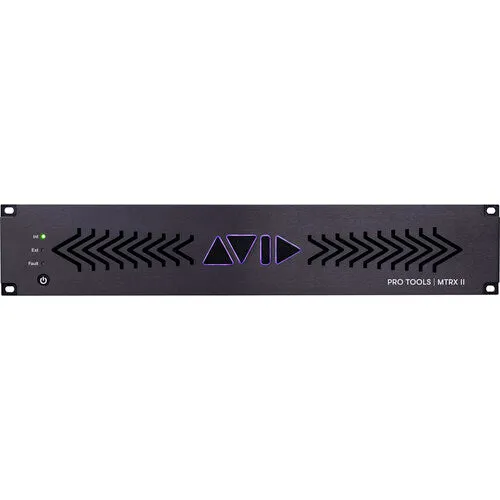

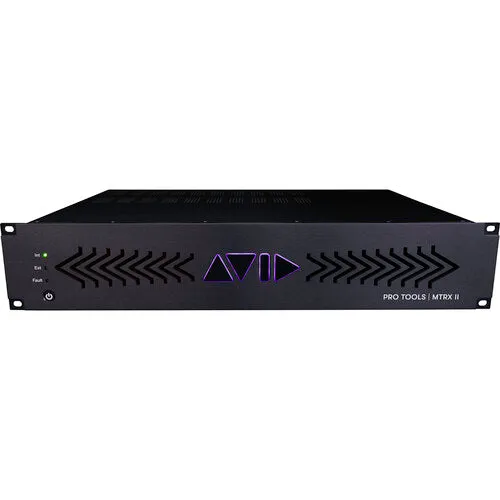

Producers, engineers, and mixers can take on the largest music or audio-post productions with the Avid Pro Tools | MTRX II Audio interface (Base Unit), a powerful studio centerpiece that offers exceptional sound quality, I/O customizability, and extensive routing and monitoring control in one interface. Used as a standalone or with Pro Tools | HDX, other DAWs, and Avid control surfaces, Pro Tools | MTRX II builds on the versatility of its predecessor, providing 64-channels of DigiLink I/O, 256 channels of Dante I/O, 64 channels of MADI I/O, Word Clock I/O, and 128 Channels of SPQ speaker processing to calibrate your room for optimal monitoring. The interface is fully modular, enabling you to customize it with up to eight analog and/or digital audio I/O option cards (available separately) to accommodate recording, mixing, ADR, Foley, or sound-design sessions of any size.
Features
For Pro Tools | HDX and Other DAWs

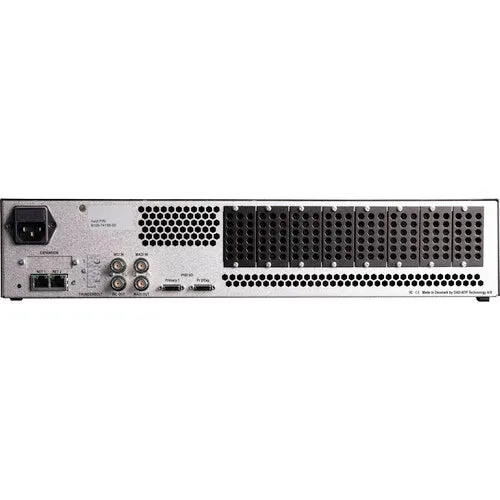

Customizable I/O, 8 Option Card Slots
64 Channels of DigiLink I/O
256 Channels of Dante I/O
64 Channels of MADI I/O
Word Clock I/O
128 Channels of SPQ Speaker Processing
4096 x 4096 I/O Routing Matrix
Sample Rates: 44.1 to 384 kHz
2 RU, 19" Rackmountable Unit
Specifications
Channels of I/O
DigiLink: 64 Inputs / 64 Outputs at 44.1/48/88.2/96/176.4/192 kHz MADI: 64 Inputs / 64 Outputs at 44.1/48/88.2/96 kHz MADI: 12 Inputs / 12 Outputs at 176.4/192 kHz Dante: 256 Inputs / 256 Outputs at 44.1/48 kHz Dante: 128 Inputs / 128 Outputs at 88.2/96 kHz Dante: 64 Inputs / 64 Outputs at 176.4/192 kHz
Maximum Sampling Rate
384 kHz / 24-Bit
Digital Audio I/O
2x BNC Coaxial MADI In/Out
Host Connection
2x DigiLink Mini
OS Compatibility
macOS Windows
Power Requirements
AC Input
Channels of I/O
DigiLink: 64 Inputs / 64 Outputs at 44.1/48/88.2/96/176.4/192 kHz MADI: 64 Inputs / 64 Outputs at 44.1/48/88.2/96 kHz MADI: 12 Inputs / 12 Outputs at 176.4/192 kHz Dante: 256 Inputs / 256 Outputs at 44.1/48 kHz Dante: 128 Inputs / 128 Outputs at 88.2/96 kHz Dante: 64 Inputs / 64 Outputs at 176.4/192 kHz
Built-In DSP
Yes
Maximum Sampling Rate
384 kHz / 24-Bit
Number of Microphone Preamps
No
Built-In Microphone
No
Expansion Slots
8x
Connectivity
Analog Audio I/O
No
Digital Audio I/O
2x BNC Coaxial MADI In/Out
Host Connection
2x DigiLink Mini
Host Connection Protocol
Avid Proprietary
USB (Non-Host)
No
Sync I/O
1x BNC Word Clock Input 1x BNC Word Clock Output
Network I/O
2x RJ45 Dante
MIDI I/O
No
Digital Audio
Sample Rates
44.1 / 48 / 88.2 / 96 / 176.4 / 192 / 384 kHz
Bit Depths
24-Bit (PCM)
Sync Sources
Dante, MADI, Word Clock
Audio Storage & Playback
Memory Card Slot
No
Compatibility
OS Compatibility
macOS Windows
Included Software
No
Mobile App Compatible
No *As of May, 2023: Check with manufacturer for the most up-to-date compatibility
Internet Connection
Required for Registration
Power
Power Requirements
AC Input
Physical
Rackmount Size
2 RU (with Optional Hardware)
Dimensions
19.1 x 14.2 x 3.5" / 485 x 360 x 90 mm
Weight
8.8 lb / 4.0 kg
Packaging Info
Package Weight
14.05 lb
Box Dimensions (LxWxH)
22.5 x 20.8 x 6.6"
Avid MTRX II Pro Tools Base Unit with DigiLink, Dante 256 and SPQ
